View In:   ArcGIS Online Map Viewer

Name: Utility atlas grid

Display Field: COLUMN_

Type: Feature Layer

Geometry Type: esriGeometryPolygon

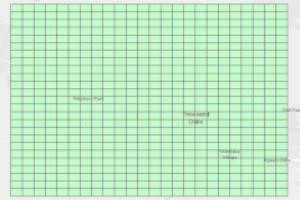

Description: Universal grid for City of Thousand Oaks. Built on State Plane Coordinate system NAD83 with 2000 x 3000 foot cells. Designed to print on D-size paper at 1" = 100' scale.

Service Item Id: 28cb0d32df3d41a5892f135505bc0be5

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 6257000.0
YMin: 1867000.0
XMax: 6329000.0
YMax: 1917000.0
Spatial Reference: 102645  (2229)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: true
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• COLUMN_ ( type: esriFieldTypeString, alias: COLUMN_, editable: true, nullable: true, length: 4, defaultValue: null, modelName: COLUMN_ )
• ROW ( type: esriFieldTypeString, alias: ROW, editable: true, nullable: true, length: 4, defaultValue: null, modelName: ROW )
• LABEL ( type: esriFieldTypeString, alias: LABEL, editable: true, nullable: true, length: 4, defaultValue: null, modelName: LABEL )
• PLAN_AREA ( type: esriFieldTypeString, alias: PLAN_AREA, editable: true, nullable: true, length: 50, defaultValue: null, modelName: PLAN_AREA )
• CITY_LIMIT ( type: esriFieldTypeString, alias: CITY_LIMIT, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CITY_LIMIT )
• PANEL_COL ( type: esriFieldTypeString, alias: PANEL_COL, editable: true, nullable: true, length: 50, defaultValue: null, modelName: PANEL_COL )
• PANEL_ROW ( type: esriFieldTypeString, alias: PANEL_ROW, editable: true, nullable: true, length: 50, defaultValue: null, modelName: PANEL_ROW )
• PANEL_LABE ( type: esriFieldTypeString, alias: PANEL_LABE, editable: true, nullable: true, length: 50, defaultValue: null, modelName: PANEL_LABE )
• SortOrder ( type: esriFieldTypeSmallInteger, alias: SortOrder, editable: true, nullable: true, defaultValue: null, modelName: SortOrder )
• Shape__Area ( type: esriFieldTypeDouble, alias: SHAPE.STArea(), editable: false, nullable: true, defaultValue: null, modelName: SHAPE.STArea(), required: true )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.STLength(), editable: false, nullable: true, defaultValue: null, modelName: SHAPE.STLength(), required: true )

Templates:

• Name: Utility atlas grid
  Description:
  Prototype:
  SortOrder: null
  PANEL_LABE: null
  COLUMN_: null
  ROW: null
  LABEL: null
  PLAN_AREA: null
  CITY_LIMIT: null
  PANEL_COL: null
  PANEL_ROW: null

  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Append   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
