Name: Utility atlas grid

Display Field: COLUMN_

Type: Feature Layer

Geometry Type: esriGeometryPolygon

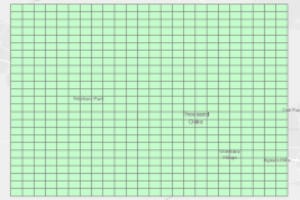

Description: Universal grid for City of Thousand Oaks. Built on State Plane Coordinate system NAD83 with 2000 x 3000 foot cells. Designed to print on D-size paper at 1" = 100' scale.

Service Item Id: a2bce96fed9747bca028f4c296fc5f55

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6257000.0
YMin: 1867000.0
XMax: 6329000.0
YMax: 1917000.0
Spatial Reference: 102645  (2229)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• COLUMN_ ( type: esriFieldTypeString, alias: COLUMN_, length: 4 )
• ROW ( type: esriFieldTypeString, alias: ROW, length: 4 )
• LABEL ( type: esriFieldTypeString, alias: LABEL, length: 4 )
• PLAN_AREA ( type: esriFieldTypeString, alias: PLAN_AREA, length: 50 )
• CITY_LIMIT ( type: esriFieldTypeString, alias: CITY_LIMIT, length: 50 )
• PANEL_COL ( type: esriFieldTypeString, alias: PANEL_COL, length: 50 )
• PANEL_ROW ( type: esriFieldTypeString, alias: PANEL_ROW, length: 50 )
• PANEL_LABE ( type: esriFieldTypeString, alias: PANEL_LABE, length: 50 )
• SortOrder ( type: esriFieldTypeSmallInteger, alias: SortOrder )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: SHAPE.STArea() )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
