View In:   ArcGIS Online Map Viewer

Name: CenterlinesWDwgInfo

Display Field: Drawing_Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

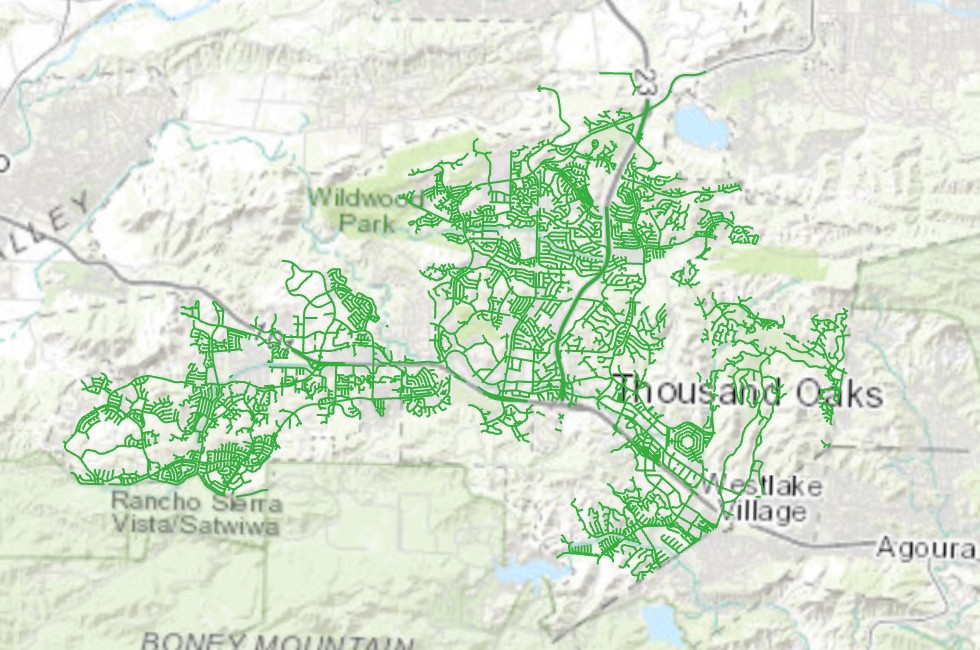

Description: This layer contains line features associated with street plans for the City of Thousand Oaks. the attribute table contains unique drawing names, corresponding sheet numbers, the total of pages corresponding to the project, and File name.

Service Item Id: e8159a3437dd47ea9e56ea2e3b1df635

Copyright Text: Produced by VSolvit. No redistributions Credit: Michael Fahrenkohf email: MFahrenkopf@toaks.gov

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 6261261.390000001
YMin: 1873512.3299999982
XMax: 6324444.359999999
YMax: 1914646.0600000024
Spatial Reference: 102645  (2229)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [112, 153, 52, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• Drawing_Name ( type: esriFieldTypeString, alias: Drawing_Name, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Drawing_Name )
• Sheet_Number ( type: esriFieldTypeString, alias: Sheet_Number, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Sheet_Number )
• Of_Sheet_Number ( type: esriFieldTypeString, alias: Of_Sheet_Number, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Of_Sheet_Number )
• Total_Pages ( type: esriFieldTypeString, alias: Total_Pages, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Total_Pages )
• File_Name ( type: esriFieldTypeString, alias: File_Name, editable: true, nullable: true, length: 50, defaultValue: null, modelName: File_Name )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape.STLength(), editable: false, nullable: true, defaultValue: null, modelName: Shape.STLength(), required: true )

Templates:

• Name: CenterlinesWDwgInfo
  Description:
  Prototype:
  File_Name: null
  Total_Pages: null
  Drawing_Name: null
  Sheet_Number: null
  Of_Sheet_Number: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Append   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
